[Testbed-admins] VLan Creation

I am moving to a new issue in hopes that I can get a little further along and not get too bogged down with nodes booting.

My issues lay with VLAN creation. My topology is a little different and I am not sure how to adjust the DB to work the way I need.

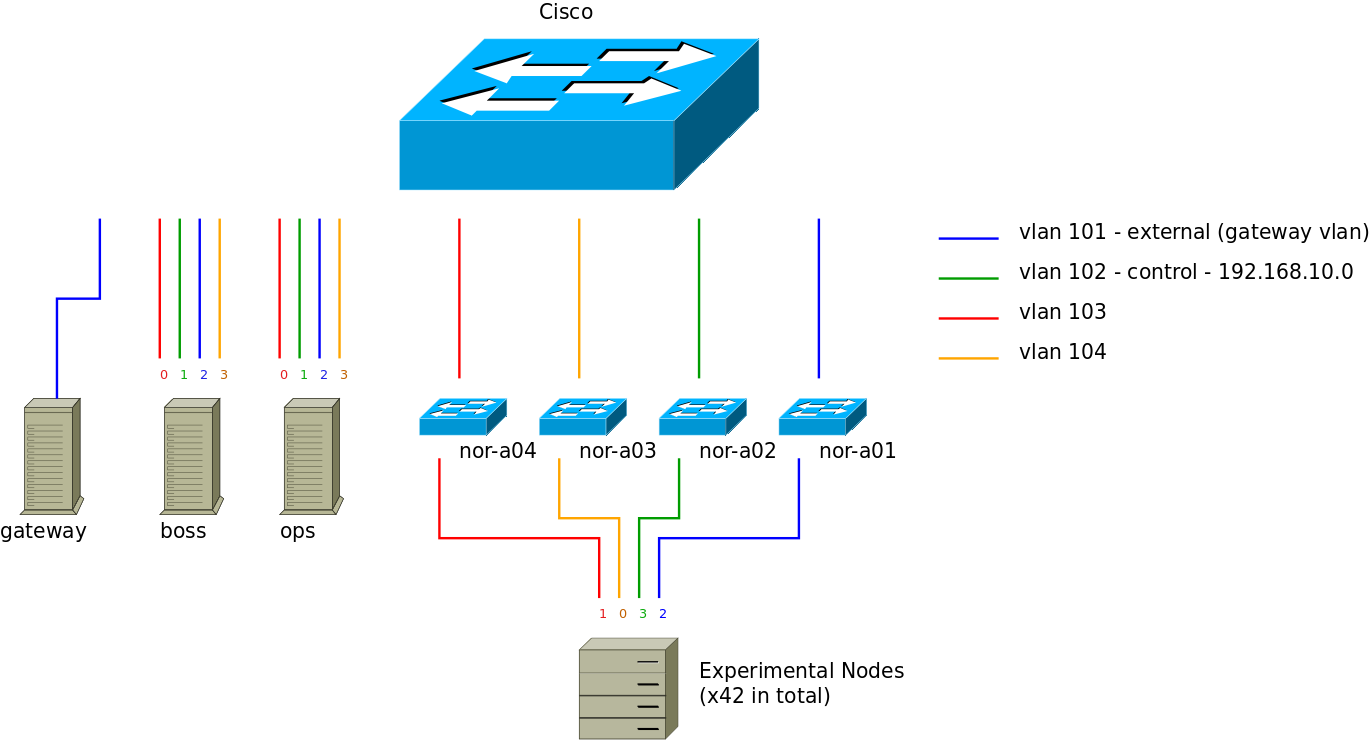

Please find attached a simplified network topology.
Info:
1. I have no access to the Cisco router at the top other than manual changes (i.e. No snmp access)
2. each 'nor-a0X' is a nortel switch
3. nor-a02 is the switch on the control vlan, I am using it to reach the nodes with TFTP and dhcp from boss
4. The nor-a0X switches are not connected together.

At this point I am aiming to get a simple dumbell experiment up using one of the 3 (unused) nortel switches (nor-a01,nor-a03,nor-a04) and two nodes.

I added two stacks to the DB, one called 'Exerimental' and the other 'Control'. I then added nor-a02 to the Control stack and the other three to the Experimental stack.

when i start an experiment I get the following output:

----Clipped----

Setting up VLANs.
TIMESTAMP: 20:38:39:603209 snmpit started
TIMESTAMP: 20:38:40:59121 os_setup started
No primary stack_id found for switch nortel_chassisa_2
TIMESTAMP: 20:38:40:69318 rebooting/reloading nodes started
Creating VLAN 10 as VLAN #2 on stack Experiment ...
reboot (pc1): Attempting to reboot ...
reboot (pc6): Attempting to reboot ...
reboot (pc1): Successful!
reboot (pc6): Successful!
reboot: Done. There were 0 failures.
reboot (pc6): child returned 0 status.
reboot (pc1): child returned 0 status.
TIMESTAMP: 20:38:42:140799 rebooting/reloading finished
Waiting for local testbed nodes to finish rebooting ...
TIMESTAMP: 20:38:42:142668 Local node waiting started
nortel_chassisa_4:findVlan: creation ... will try again
nortel_chassisa_4:findVlan: creation ... will try again
nortel_chassisa_4:findVlan: creation ... will try again
nortel_chassisa_4:findVlan: creation ... will try again
nortel_chassisa_4:findVlan: creation ... will try again
Still waiting for pc6 - it's been 1 minute(s).
nortel_chassisa_4:findVlan: creation ... will try again
nortel_chassisa_4:findVlan: creation ... will try again
nortel_chassisa_4:findVlan: creation ... will try again
nortel_chassisa_4:findVlan: creation ... will try again
nortel_chassisa_4:findVlan: creation ... will try again
nortel_chassisa_4:findVlan: creation ... will try again
Still waiting for pc6 - it's been 2 minute(s).
nortel_chassisa_4:findVlan: creation ... will try again
nortel_chassisa_4:findVlan: creation .. giving up
Failed
*** ERROR: snmpit: Failed to create VLAN with id 10
Use of uninitialized value in concatenation (.) or string at /usr/testbed/lib/snmpit_nortel.pm line 920.
Use of uninitialized value in concatenation (.) or string at /usr/testbed/lib/snmpit_nortel.pm line 926.
Use of uninitialized value in concatenation (.) or string at /usr/testbed/lib/snmpit_nortel.pm line 928.
Use of uninitialized value in concatenation (.) or string at /usr/testbed/lib/snmpit_nortel.pm line 920.
Use of uninitialized value in concatenation (.) or string at /usr/testbed/lib/snmpit_nortel.pm line 926.
Use of uninitialized value in concatenation (.) or string at /usr/testbed/lib/snmpit_nortel.pm line 928.
Use of uninitialized value in concatenation (.) or string at /usr/testbed/lib/snmpit_nortel.pm line 920.
Use of uninitialized value in concatenation (.) or string at /usr/testbed/lib/snmpit_nortel.pm line 926.
Use of uninitialized value in concatenation (.) or string at /usr/testbed/lib/snmpit_nortel.pm line 928.
Use of uninitialized value in concatenation (.) or string at /usr/testbed/lib/snmpit_nortel.pm line 920.
Use of uninitialized value in concatenation (.) or string at /usr/testbed/lib/snmpit_nortel.pm line 926.
Use of uninitialized value in concatenation (.) or string at /usr/testbed/lib/snmpit_nortel.pm line 928.
*** ERROR: tbswap: Failed to set up VLANs.
Cleaning up after errors.

----Clipped----





--
Chris Benninger
University of Victoria, Computer Science
cbenning@cs.uvic.ca
http://syfor.com

--
This message has been scanned for viruses and
dangerous content by MailScanner, and is
believed to be clean.

Attachment: emulab_logical.png
Description: PNG image
